Displaying the ArtiVR Scene on your Meta Quest™ Headset

Displaying the ArtiVR Scene on your Meta Quest™ Headset

Once you have created your ArtiVR scene, you will be provided with a URL link. This will be emailed to the email address you provided ArtiCAD with upon set up.

To Load your scene onto the Meta Headset

1. Open the Browser on the Meta Headset

2. Type in the URL for the ArtiVR Scene


To begin the VR Scene on the Headset

1.  Click the Play button on the ArtiVR Scene

2. Click the Tour Button to turn off the automatic tour (You have to turn this off in order to enter the VR scene)

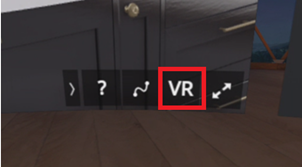

3. Click the VR Button; this will put the headset into the VR Scene.

4. You are now free to move around the VR Scene. This works in-line with the boundary you have set. (Please refer to ‘Setting up the Play Area’ for further information on this)

5. To Exit the VR Scene, Click the Meta Home Button on the Right Handset.


Bookmarking the Scene

You can store the ArtiVR Scene/s on the Headset by bookmarking them on the Browser (Please note that you still have to be connected to Wi-Fi on the Headset to load the scene/s)

1. Once you have loaded the Scene into the Browser, Click the Bookmark button [To the right of the URL]

2. This will open another menu which will ask you for a Title. [You can name this to find it easier in your bookmarks]

3. Click Save

4. Once saved, your bookmarks are stored on the Right Hand Column
