How to use more than one catalogue in a design

How to use more than one catalogue in a design

We've made it even easier to design using multiple catalogues in ArtiCAD!

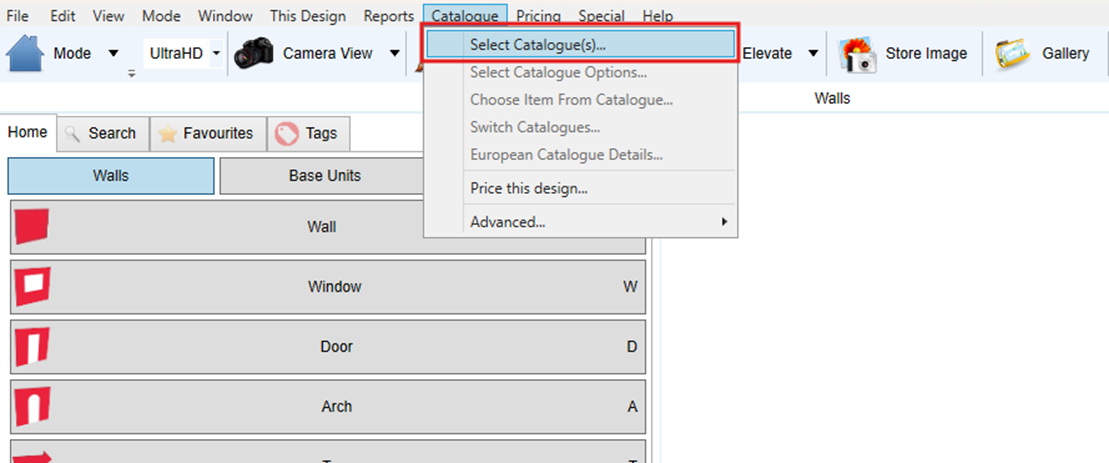

1. To use more than one catalogue in your design, select 'Catalogue' at the top of ArtiCAD and choose 'Select Catalogue'.

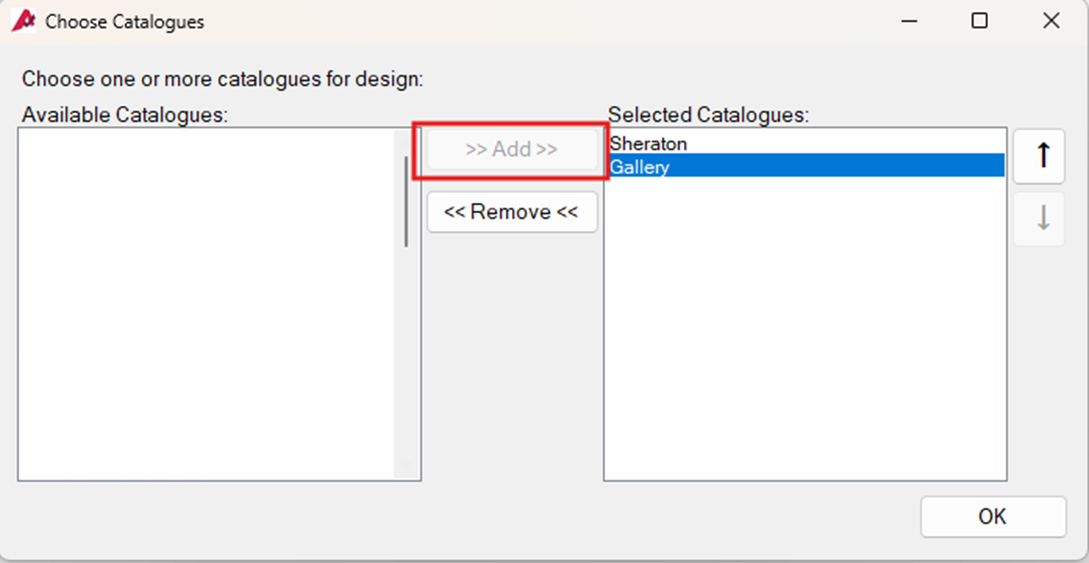

2. You can add your desired catalogues from this list by clicking the name and selecting '>>Add>>'. Once you have chosen all the catalogues you need, click 'OK'.

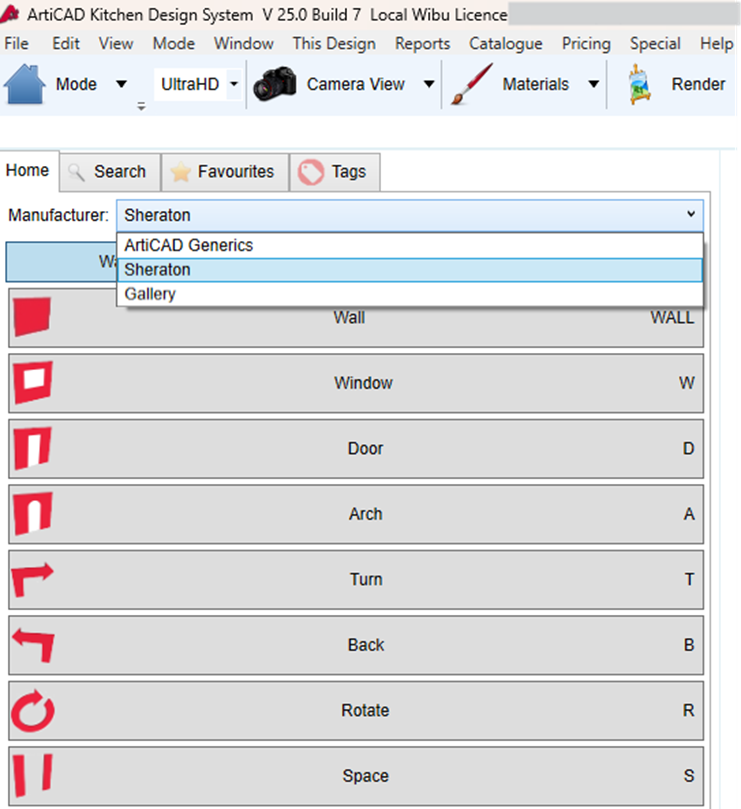

3. You will now receive a new Manufacturer menu on the left hand side of the ArtiCAD menu. Here you can seamlessly switch between the catalogues you have selected for your design.
