What is a Page Layout?

Page layout is a presentation tool within ArtiCAD to show designs, renders etc to customers. This is created in ArtiCAD and can be sent directly to customers.

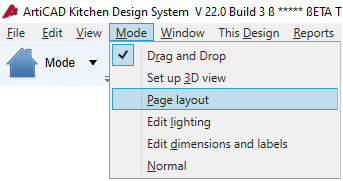

To enter Page Layout mode, click 'Mode' at the top of ArtiCAD and select 'Page layout'.
