Setting up your BedCAD design

Setting up your BedCAD design

This Design (Menu)

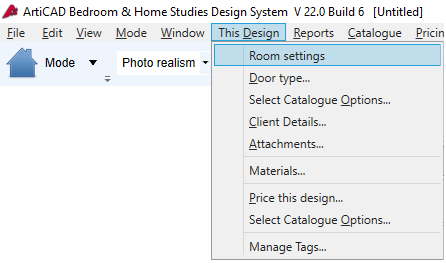

Before starting your design there are certain options you may wish to change. These are found under 'This Design - 'Room Settings':





The ‘Doors Have Frames’ option controls whether cabinets are drawn with ‘plant-on’ or ‘in-frame’ style doors. See ‘Door Frame Type’ on the ‘Utilities Window’.

With the exception of the tiling option, you can change any of the properties found under ‘Room Settings’ as you are doing your design and it will update the design to the new settings.

Door Type

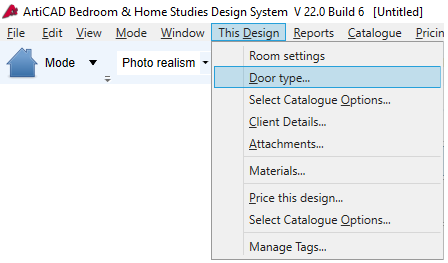

To change this, go to ‘This Design’ - ‘Door type…’ or lick on the ‘Doors’ icon:

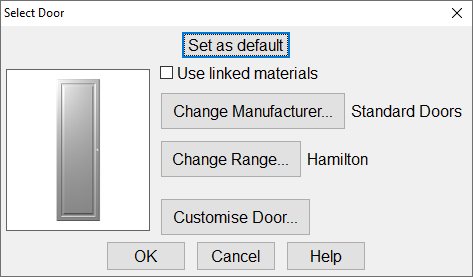

This will bring up options to select a door:



To change the manufacturer, click ‘Change Manufacturer’:

BathCAD Setting up your design 8.jpg

This brings up any door graphics you’ve downloaded from the ‘Members Area’ and installed on your machine. They will appear below the ‘Standard Doors’ already provided in the system. Click on the one you wish to use and click ‘OK’.

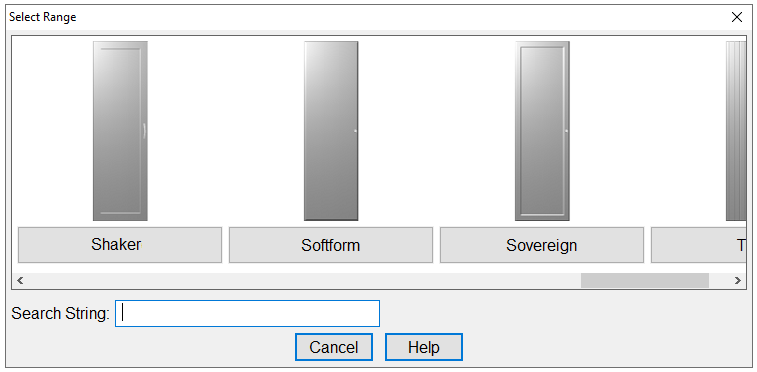

Once you have selected a manufacturer you can now select the range by clicking ‘Change Range’:

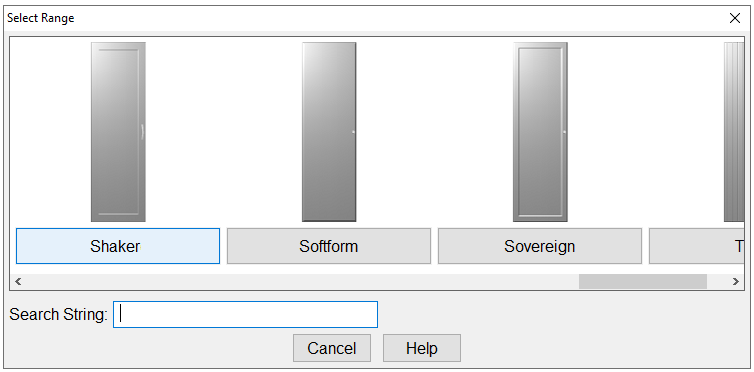

To select a different range, click the button with the range name on.



Once you have selected a range, you can now click ‘Customise Door’ to pick the handles.

BathCAD Setting up your design 11.jpg

Each range has a default handle. To change the handle, first select the door type from the ‘Door type’ drop down box.

BathCAD Setting up your design 12.jpg

To select manufacturer feature frame doors, click on ‘frame…’ and you can change the options:

BathCAD Setting up your design 13.jpg

BathCAD Setting up your design 14.jpg

The location of the handle will change depending on the door type. Select ‘Handle Location…’ to change this:

BathCAD Setting up your design 15.jpg

BathCAD Setting up your design 16.jpg

Repeat for the other door types.

Click on ‘Handle…’ to change to another option:

BathCAD Setting up your design 17.jpg

BathCAD Setting up your design 18.jpg

Under ‘Apply Current Handle…’, you can apply the selected handle to all doors or drawers in the design.

BathCAD Setting up your design 19.jpg
BathCAD Setting up your design 20.jpg

NOTE - You can return to the ‘Door Type’ section any time. You do not need to change the range or all the handles etc. before starting the design, as any changes made will update your current design.

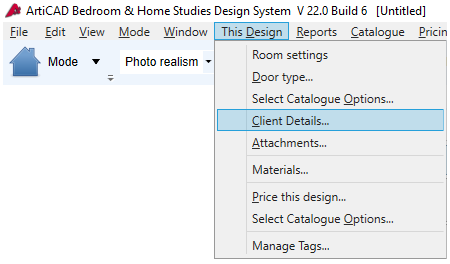

Client Details


Details of the client:



You can fill in any or all of the details here. The details are stored with the design and can be automatically placed onto your print outs - see Creating Page Layouts.

Attachments

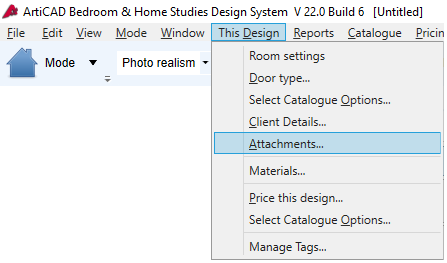

‘Attachments…’ allows you specify the profile of your worktop edging, cornice, pelmet, plinth, etc.

BathCAD Setting up your design 24.jpg

Select the attachment you wish to change and a thumbnail of the current profile will appear on the right of the window. Select ‘Change...’ to see the other available profiles.

BathCAD Setting up your design 25.jpg

Click on the new profile button you want to change your selected attachment to.

NOTE – ‘Cornice’, ‘Pelmet’ and ‘Plinth’ have a special hidden option. This removes these attachments from all of the units in your design.

BathCAD Setting up your design 26.jpg

You can change the attachments at any time while you are designing and it will update your design.

Now your design has been set up, you can move on to drawing your room.
