Reports, Parts list and Attachments (BathCAD)
Reports are generated by BathCAD based on the current design. To generate a report click on 'Reports' and then the name of the report you want to generate. They open up as a text document using your default text editor (normally Notepad).
The report will be called 'report.txt'. You may wish to save the file as a different name.
The default text editor can be changed by clicking 'Special' - 'Edit global ini'. Click the 'Browse' button next to the Text Editor box and find the program you wish to use.
NOTE - If you attempt to generate a report and nothing appears, it's possible your default editor is set to a non-existent or invalid program.
Parts List
The parts list details the units used in the design. The level of detail can be changed by clicking 'Reports' - 'Configure Parts list' (see below).
A simple parts list example:
--------------------------------------------------------------------------------
Base units:
1. 600mm Base Unit
2. 600mm Base Unit
3. 600mm Base Unit
1. 600mm Base Unit
2. 600mm Base Unit
3. 600mm Base Unit
Wall units:
4. 500mm Wall Unit
5. 500mm Mirrored Wall Unit
6.500mm Wall Unit
4. 500mm Wall Unit
5. 500mm Mirrored Wall Unit
6.500mm Wall Unit
Using the following settings under 'Reports' - 'Configure parts list':
A fully detailed parts list example:
--------------------------------------------------------------------------------
Base units:
1. 600 600mm Base Unit F.H.D., Depth = 600mm, Height = 870mm
1 X 715mm by 596mm Base Unit Door LHH
2. 600 600mm Base Unit 3D., Depth = 600mm, Height = 870mm
1 X 140mm by 596mm Base Unit Drawer LHH
1 X 120mm by 596mm Base Unit Drawer
1. 600 600mm Base Unit F.H.D., Depth = 600mm, Height = 870mm
1 X 715mm by 596mm Base Unit Door LHH
2. 600 600mm Base Unit 3D., Depth = 600mm, Height = 870mm
1 X 140mm by 596mm Base Unit Drawer LHH
1 X 120mm by 596mm Base Unit Drawer
Wall units:
4. 500 500mm Wall Unit, Depth = 300mm, Height = 720mm
1 X 715mm by 496mm Wall Unit Door LHH
5. 500:g 500mm Glass Wall Unit, Depth = 300mm, Height = 720mm
1 X 715mm by 496mm Glass Wall Unit Door LHH
Doors (Standard Doors Shaker unless otherwise stated):
4. 500 500mm Wall Unit, Depth = 300mm, Height = 720mm
1 X 715mm by 496mm Wall Unit Door LHH
5. 500:g 500mm Glass Wall Unit, Depth = 300mm, Height = 720mm
1 X 715mm by 496mm Glass Wall Unit Door LHH
Doors (Standard Doors Shaker unless otherwise stated):
1 X 715mm by 596mm Base Unit Door LHH
1 X 120mm by 596mm Base Unit Drawer
1 X 140mm by 596mm Base Unit Drawer LHH
1 X 715mm by 496mm Wall Unit Door LHH
1 X 715mm by 496mm Glass Wall Unit Door LHH
1 X 120mm by 596mm Base Unit Drawer
1 X 140mm by 596mm Base Unit Drawer LHH
1 X 715mm by 496mm Wall Unit Door LHH
1 X 715mm by 496mm Glass Wall Unit Door LHH
Worktop "Pencil Round Top ":
Edging:
Total length = 3200;
Items required = 2; Offcuts left: 2.
Solid: Depth 600:
Total length = 1800;
Items required = 1; Offcuts left: 1.
Total length = 3200;
Items required = 2; Offcuts left: 2.
Solid: Depth 600:
Total length = 1800;
Items required = 1; Offcuts left: 1.
Cornice "Traditional Cornice":
Total length = 2000;
Items required = 1; Offcuts left: 1.
Total length = 2000;
Items required = 1; Offcuts left: 1.
Pelmet "Traditional Light Pelmet":
Total length = 1800;
Items required = 1; Offcuts left: 1.
Items required = 1; Offcuts left: 1.
Plinth "Plinth":
Total length = 2960;
Items required = 1; Offcuts left: 1.
Total length = 2960;
Items required = 1; Offcuts left: 1.
PRE-CUT:
Worktop (solid) 1800 X 600
Worktop (strip) 600 90° 1800 90° 600
Worktop (strip) 600 90° 1800 90° 600
Cornice (strip) 300 90° 1000 90° 300
Pelmet (strip) 300 90° 1000 90° 300
Plinth (strip) 530 90° 1800 90° 530
Using the following settings under 'Reports' - 'Configure parts list':

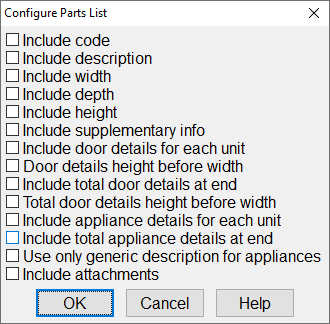

Configure Parts List
Include Code: Include the unit code for each item.
Include Description: Include the desciption of the unit.
Include Width/Depth/Height: Include the width/depth/height of the item.
Include Supplementary Info: The short description of the door arrangement e.g. F.H.D for full height door, 3D for three drawers.
Include Door Details For Each Unit: Add a list of the doors/drawers per unit e.g. 1 X 715mm by 596mm Base Unit Door LHH.
Door Details Height Before Width: The default is to display door information width by height.
Include Total Door Details At End: Adds a separate list of all the doors and drawers used.
Total Door Details Height Before Width: The default is to display door information width by height.
Include Appliance Details For Each Unit: List the appliance(s) for each unit.
Include Total Appliance Details At End: Adds a separate list of all the appliances used.
Use Only Generic Description For Appliances: Even if you use a manufacturer specific appliance, it will be listed with a generic description
Include Attachments: Includes the Attachments report at the end (in the above example that's everything after Attachments:). Can be generated separately (see Attachments below)
Your settings under 'Reports' - 'Configure parts list' are saved when you exit from BathCAD. The same settings are used when using the parts list when doing a page layout. See Creating page layouts for details.
Include Description: Include the desciption of the unit.
Include Width/Depth/Height: Include the width/depth/height of the item.
Include Supplementary Info: The short description of the door arrangement e.g. F.H.D for full height door, 3D for three drawers.
Include Door Details For Each Unit: Add a list of the doors/drawers per unit e.g. 1 X 715mm by 596mm Base Unit Door LHH.
Door Details Height Before Width: The default is to display door information width by height.
Include Total Door Details At End: Adds a separate list of all the doors and drawers used.
Total Door Details Height Before Width: The default is to display door information width by height.
Include Appliance Details For Each Unit: List the appliance(s) for each unit.
Include Total Appliance Details At End: Adds a separate list of all the appliances used.
Use Only Generic Description For Appliances: Even if you use a manufacturer specific appliance, it will be listed with a generic description
Include Attachments: Includes the Attachments report at the end (in the above example that's everything after Attachments:). Can be generated separately (see Attachments below)
Your settings under 'Reports' - 'Configure parts list' are saved when you exit from BathCAD. The same settings are used when using the parts list when doing a page layout. See Creating page layouts for details.
Attachments: Generates the list of attachments (worktop, cornice, pelmet etc) used in this design. Identical to the information added to the parts list when 'Include Attachments' is selected in 'Configure Parts list'.
